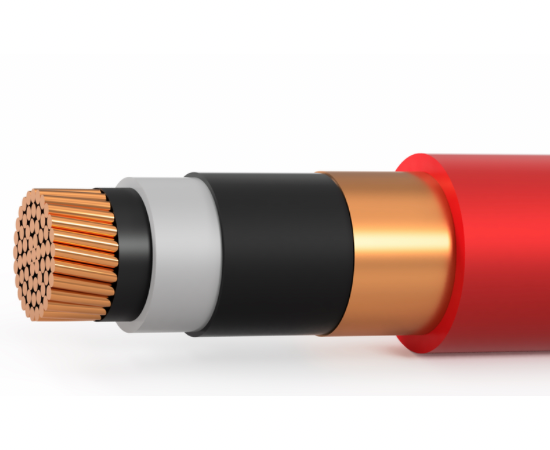

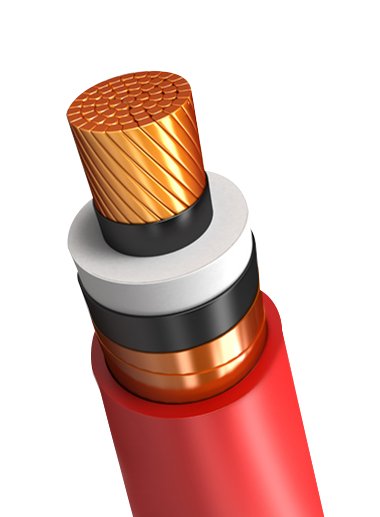

Single Core Cu/PVC/PVC LV Cable

Nom. Area (mm²)	Resistance (Ω/km)	Ins. Thk. (mm)	Sheath Thk. (mm)	O.D. (mm)	Weight (kg/km)	Packing (m±10%)	Drum/Coil	Gross Wt. (kg)
1.5	12.10	0.8	1.4	6.4	58	100 m	C1	5.3
2.5	7.41	0.8	1.4	7.4	90	100 m	C1	8.2
4	4.61	0.8	1.4	8.2	125	100 m	C1	11.4
6	3.08	0.8	1.4	9.2	170	100 m	C1	15.6
10	1.83	1.0	1.4	11.0	255	100 m	D1	24.5
16	1.15	1.0	1.5	12.8	385	100 m	D1	37.0
25	0.727	1.2	1.5	15.0	570	100 m	D2	55.0
35	0.524	1.2	1.5	16.8	760	100 m	D2	73.0
50	0.387	1.4	1.6	18.8	1000	100 m	D2	96.0
70	0.268	1.4	1.6	20.9	1320	100 m	D3	127.0
95	0.193	1.6	1.7	23.5	1700	100 m	D3	164.0
120	0.153	1.6	1.8	25.7	2110	50 m	D4	101.0
150	0.124	1.8	1.8	27.9	2560	50 m	D4	123.0
185	0.0991	2.0	2.0	31.2	3170	50 m	D4	153.0
240	0.0754	2.2	2.2	34.9	4050	50 m	D5	195.0
300	0.0601	2.4	2.4	38.5	4990	50 m	D5	241.0
400	0.0470	2.6	2.6	43.5	6400	50 m	D6	308.0
